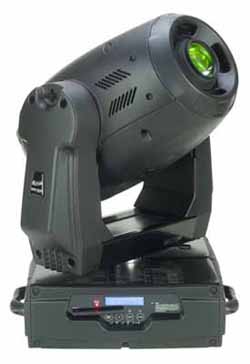

Design Spot 300 Pro
COLORS
• CMY color mixing
• 8 interchangeable dichroic filters (including CTO, UV & CTB) plus white
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
• 2 Gobo Wheels, 13 Total Gobos, 10 Metal, 3 Glass
• 6 Interchangeable, Indexable, Rotating Gobos plus open
• 7 Interchangeable, Static Gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)
SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
• Flicker free
IRIS
• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small
FROST
• Hard edge to soft edge frost
PRISM
• Effect wheel with 3-facet & 3D Glass Prism rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prisim combinations
ZOOM
• Motor driven Variable Zoom 16 to 41 Degrees
FOCUS
• Motor driven focus from near to far
Control Features
• 22 DMX Channels
• EWDMX Wireless DMX receiver built in
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resolution)
• Full Text LCD Display
• On board menu settings
• 3-pin & 5-pin XLR serial input/output
OPTICAL SYSTEM
• High output luminous-parabolic dichroic reflector
• Variable Beam Angle 16 – 41 degrees
• 5,300 Lux @ 5M
LAMP
• Lamp Source: MSR 300
• Type: Discharge
• Wattage: 300W
• Base: Fast Fit Gold
• Rated Average Life: 1,000
• Color Temp: 8,500k
PAN/TILT
• Automatic Pan /Tilt position correction
• Pan/Tilt Lock
• Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Vector Mode with blackout
POWER SUPPLY
• Electronic Power Supply - Multi-voltage: AC 98V ~ 240V 50/60Hz
• 4.1A or 490W
DIMENSIONS & WEIGHT
• (LxWxH): 15.83” x 17.68" x 20.11” - Head Level
• 58 lbs. 26.5 kgs.
• DB Rating 52db@ 3’
|
